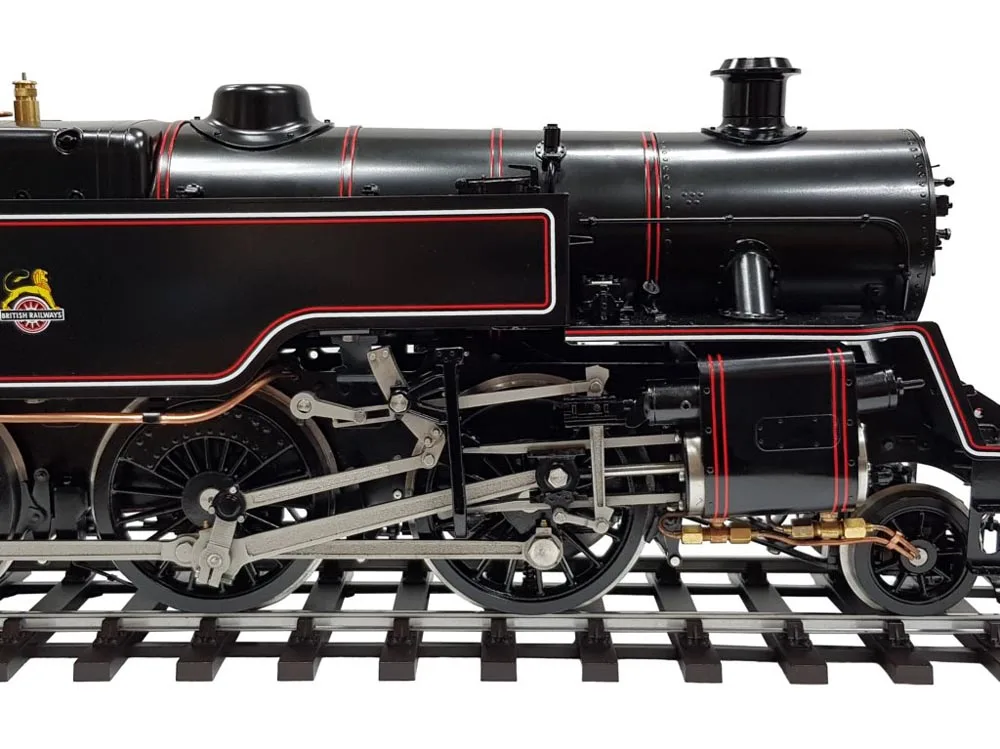

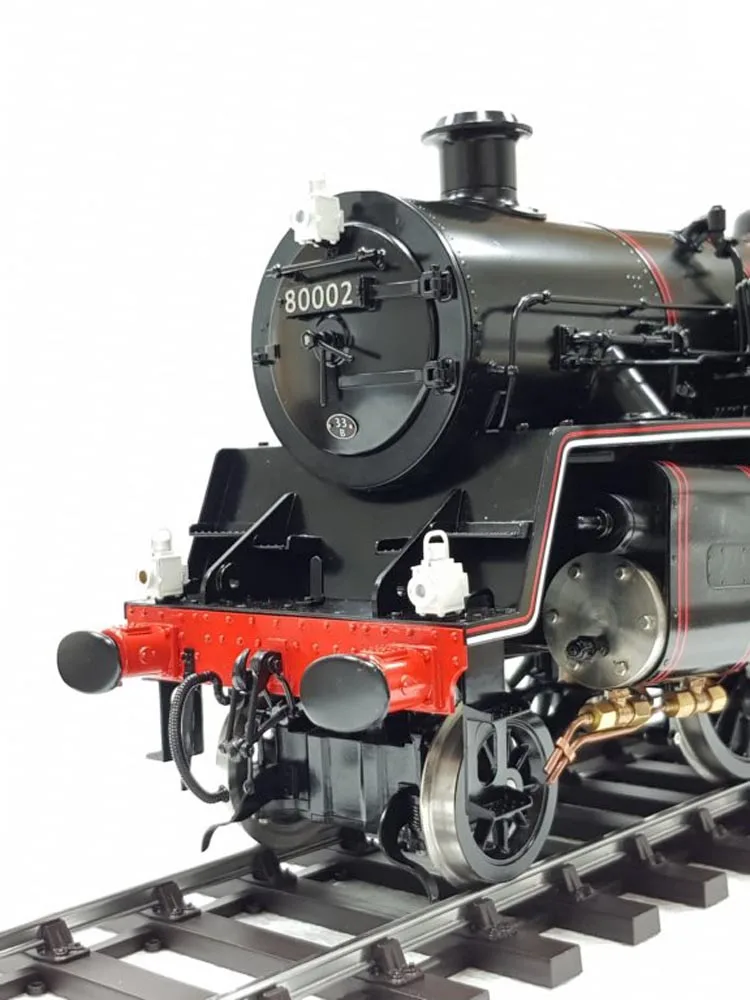

4MT , 127mm gauge , 1:11.3 Live Steam Locomotive -

FOB Reference Price:Get Latest Price
1 Piece/Pieces pcs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other Toy Vehicle
Place of Origin:
Anhui, China (Mainland)
Brand Name:
bowande
Model Number:
LS03
material:
brass
power:
live steam
Packaging & Delivery
Packaging Details
Inner Package: wooden frame, foam
Outer package: wooden box
Port
Shanghai or Wuhu
Lead Time :
in the beginning of May

Coming soon!

All-New 5" 4MT will come out in Autumn , 2018,



with all correct details and technical improvements!





TECHNICAL SPECIFICATION : 4MT, 5" gauge

5" Gauge 127mm
Coal-fired live steam , 2 cylinders
Bronze cylinder block. Stainless steel pistons .
Walschaerts valve gear
Fitted injector
Steam operated cylinder drain cocks
Fitted  displacement lubricator / Sight feed lubrication
Silver soldered copper boiler (CE marked and hydraulically tested)
UK made Pressure gauge , working pressure at 90 psi
"Boiler fittings: Water gauge with blow down,
blower valve, whistle, injector steam valve,
independent check valves for axle pump and injector,
boiler blow down valve, steam brake valve.
All valves have captive spindles"
Screw reverser
Multi-element superheater
Boiler feed by injector, axle pump and hand-pump
Stainless steel motion
Sprung axle boxes with needle roller bearings
springs to all axles
Etched brass body with rivet detail
Removable cab roof for easy access to controls
2 working safety valves
Fitted with working steam brakes
Choice of livery: Green/Black
Fully painted and lined
Ready-to-run
12 months warranty
