Quick Details

  • Type: Other Toy Vehicle
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: Bowande
  • Model Number: G scale (Gauge 1, 45mm)
  • Power: Live steam (gas fired)
  • Material: Brass, Stainless Steel, Copper
  • Fuel: Butane gas
  • Useness: Collection & Play
  • Style: Emulational

Packaging & Delivery

Packaging Details: foam innber box + outer carton box
Delivery Detail: Within 3 days upon receipt of payment

After Casey Jones, this is a new 4-6-0 USA Style live steam locomotive model which are available from the end of 2014. Welcome to enquire and order now.







History

The Ten Wheeler, 4-6-0 Type, was developed to handle the heavier trains, both freight and passenger than
the 4-4-0 types could handle. Modern engineering resulted in railroads developing many, much more powerful
locomotives than the 4-6-0 wheel arrangement. The Pennsy had over 100 ten wheelers and needed a more
powerful model for commuter trains with their many stations and tight schedules. This resulted in the Class G5s.
Built at ALtoona's Juniata's shops, these ninety locomotives were the heaviest 4-6-0's ever built at 237,000
pounds and most powerful at 41,330 pounds tractive effort. With 68 inch drivers, they had the power to quickly
accelerate a good size passenger train. The rear driver was staggered further back to allow superb weight
balance on the drivers. Used mostly for commuter trains with many quick starts and stops, they operated on
track where heavier engines were prohibited. They were built with super heaters, power reverse gear and
were hand fired - never receiving stokers. They were also used on milk trains. They were built between 1923
and 1925 with a batch of fifty numbered 5700 to 5749 for the Pennsy and 31 for the subsidiary Long Island
Railroad with numbers 20 - 50. These engines lasted until the end of steam in the mid 1950's.


Technical parameters

Scale: 1/32
Material: Brass, Stainless Steel

Gauge: 45mm

Minimum Radii: 2000mm

Dimensions: L702 x W106 x H147mm

Wheel configuration: 4-6-0

Fuel: Butane gas

Power: Live steam

Run time: More than 1 hour



Model Features
Brass construction and stainless steel wheel
Silver soldered copper boiler
Ceramic burner
Gas fired
Fully functioning Walschaerts valve gear
Opening smoke box door
Correct wheel profiles
Adjustable safety valves
Slide valves
Sprung axles locomotive and tender
Sprung buffers
Hand pump with check valve
Axle pump with bypass valve
Lubricator
Water gauge
UK imported pressure gauge
Workable whistle



Model Choices
Pennsylvania #5741
Pennsylvania #5748
Long Island #28



All are limited released and supplied with sole collection certificate.

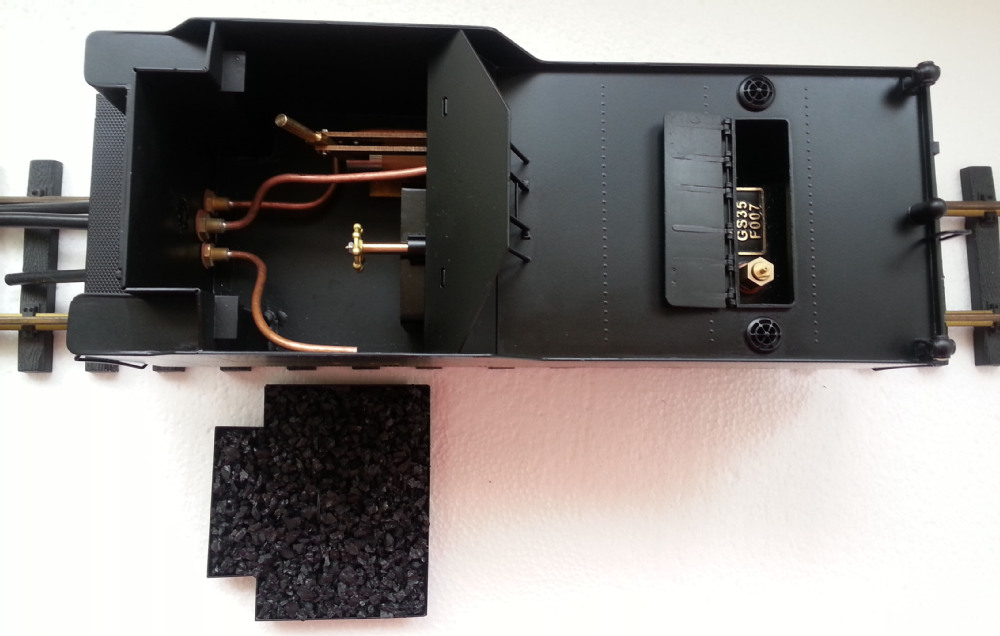

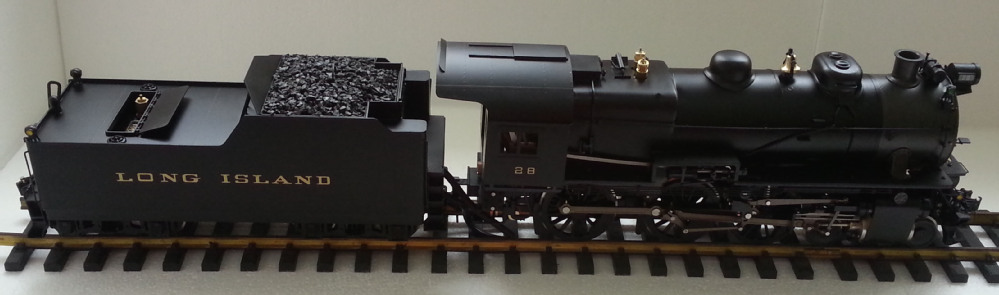

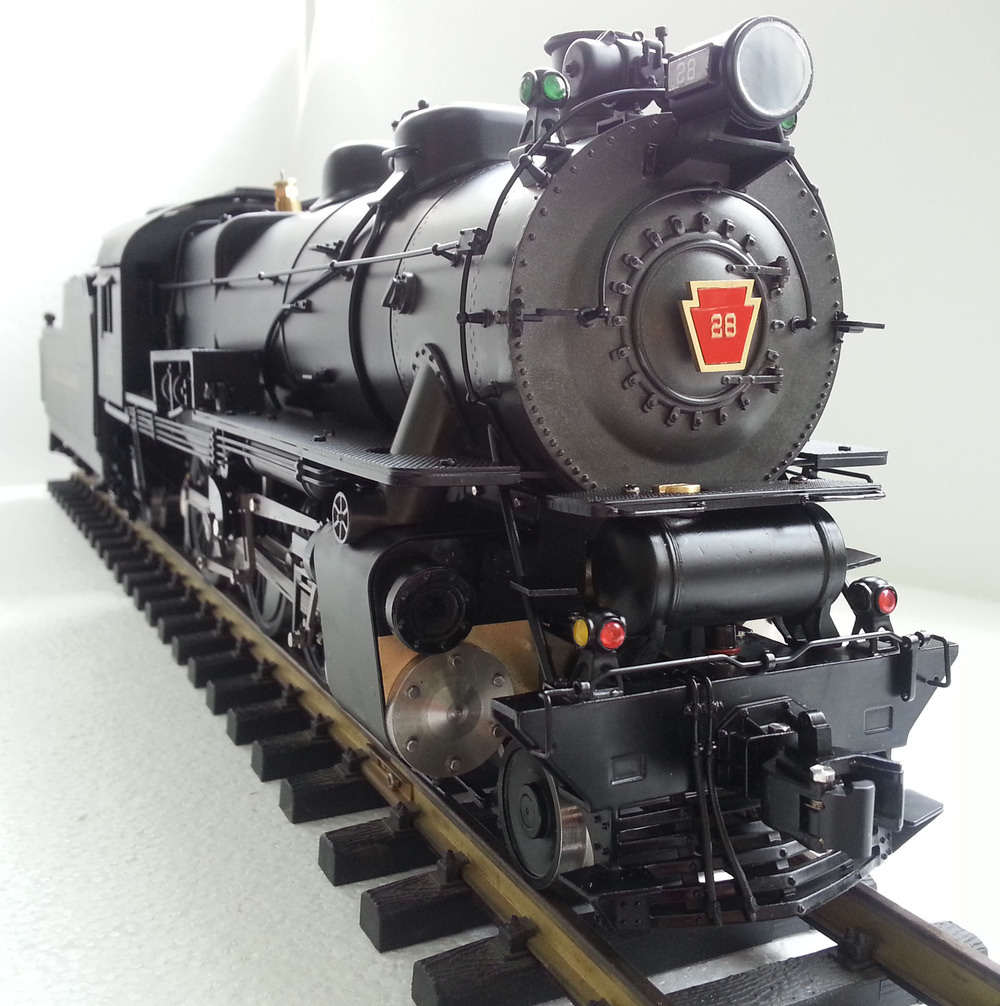

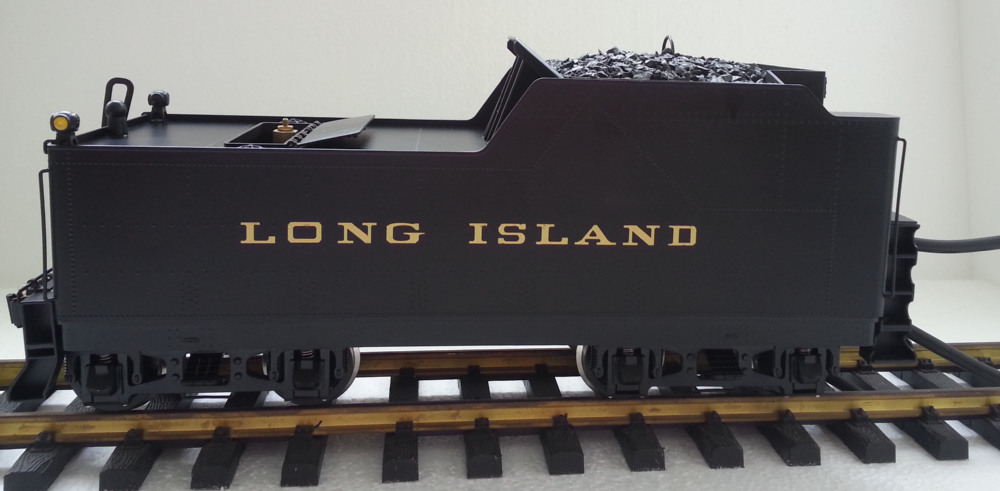

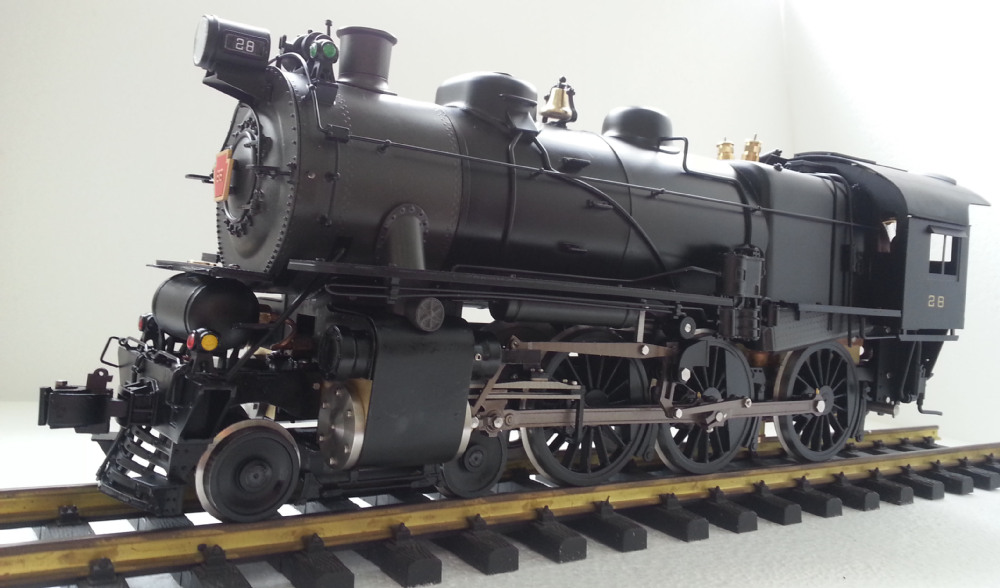

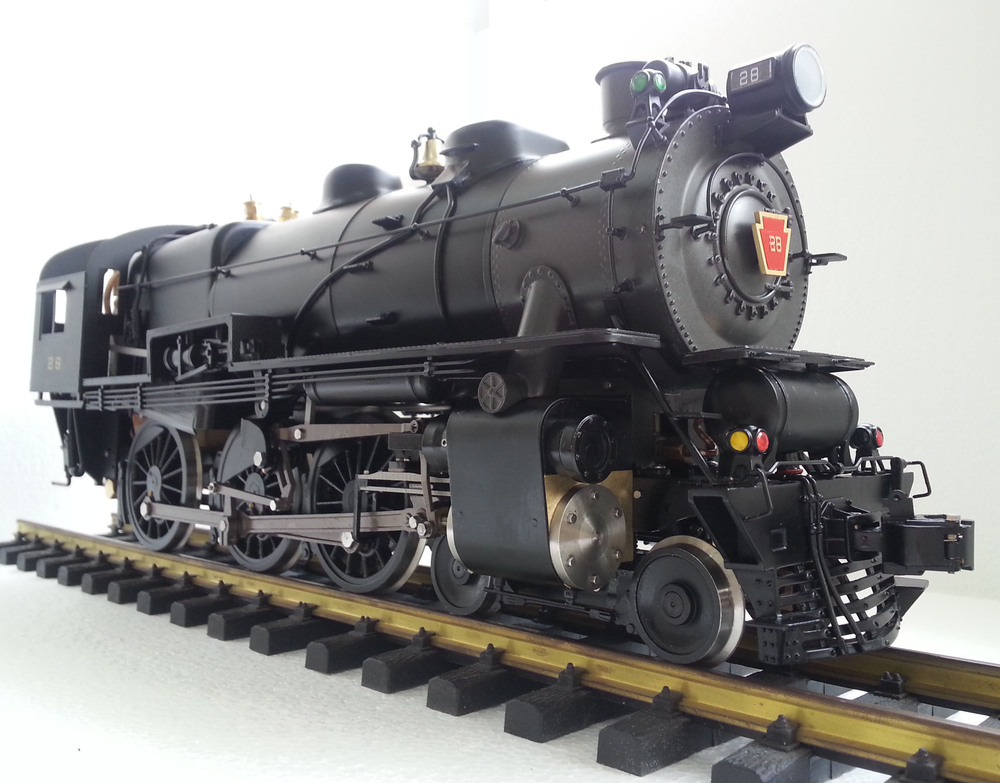

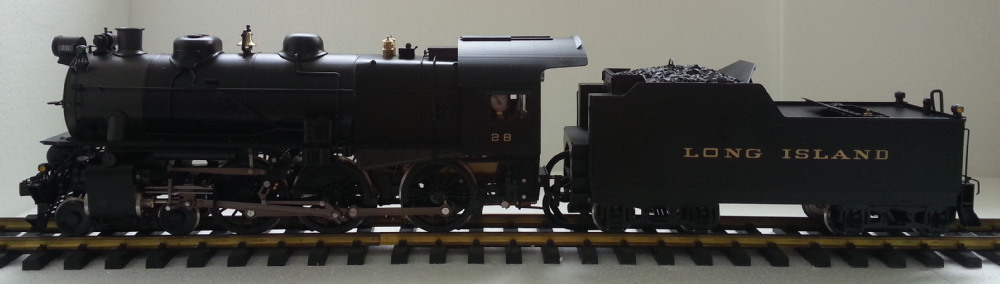

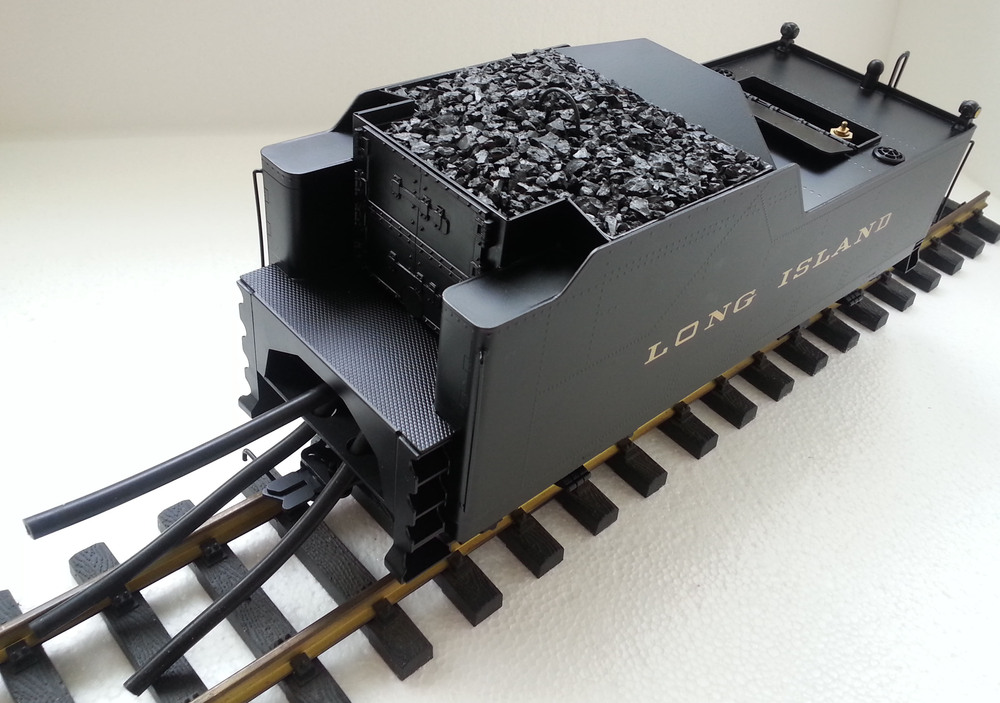

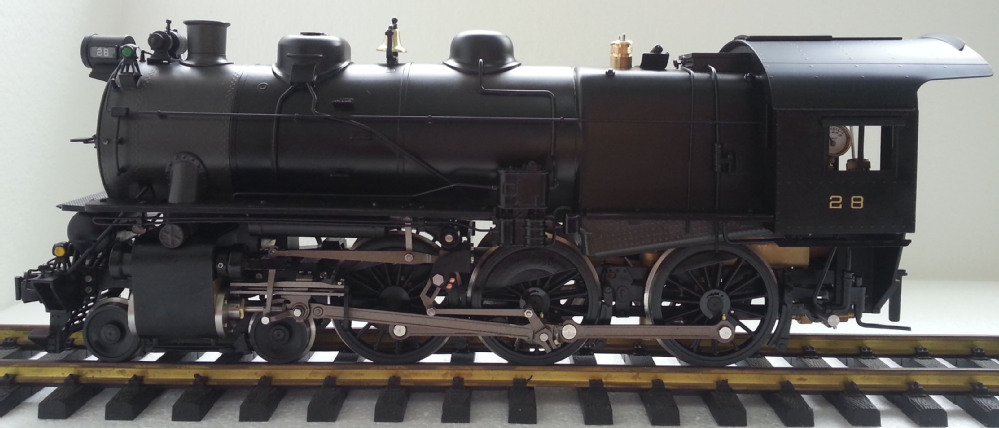

Detailed photos of Long Island 28# are showing as below.
